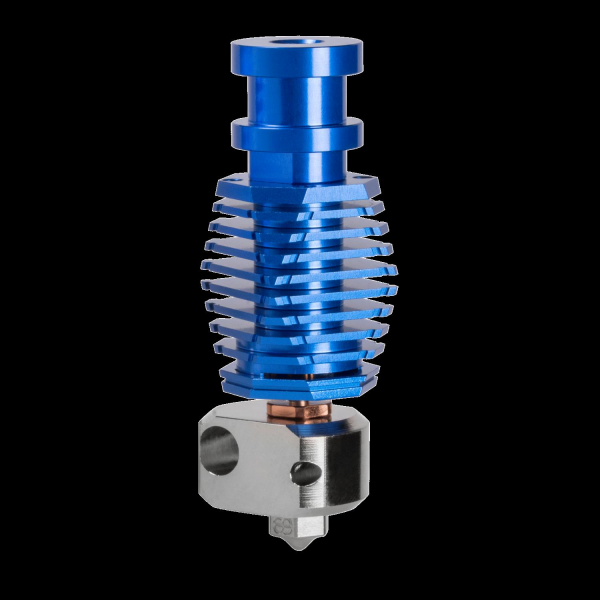

Phaetus Phaetus Dragonfly hot-end BMO

Features

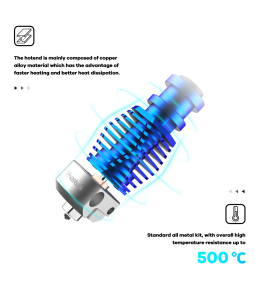

• All metal kit, with overall high temperature resistance up to 500°C.
• The hot end is mainly made of copper alloy, which has the advantage of faster heating and better heat dissipation.

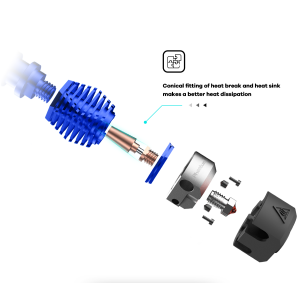

• The conical matching of heat break and heat sink ensures perfect heat dissipation.

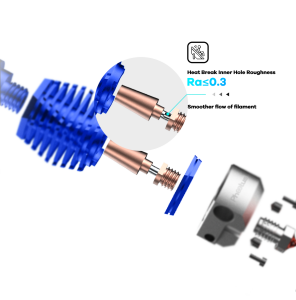

• The inner hole roughness of heat break Ra≤0.3, which enables smoother movement of filament, resulting in higher resolution of prints.

Compatibility

• V6 adapter status: all V6 HOTEND interfaces, Prusa I3 MK3/MK3S, Titan extruder, BMG extruder.
• No V6 adapter status, Compatible with DIY design.

Details

• Nozzle diameter: Can be adjusted arbitrarily
• Size: 49mm x 21mm x 24mm
• Material process: High strength and high conductivity plated copper, hexahedron hardened steel, high quality brass alloy, low demsity high strength aluminum alloy
• Appearance Color: Blue / Black
• Net weight: 38g

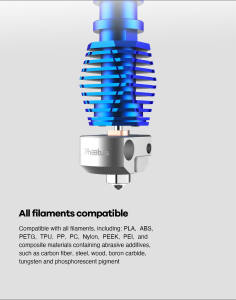

• Applicable materials: compatible with all filaments, including: PLA, ABS, PETG, TPU, PP, PC, nylon, PEEK, PEI and composite materials containing abrasive additives, such as carbon fiber, steel, wood, boron carbide, tungsten and phosphorescent pigments

Accessory list:

• Hex (1.27/1.50/2.00 each)
• Open-end wrench (5mm/12mm each)
• M1,4 hexagon socket screws *2pcs.
• M2,5 hexagon socket screws *4pcs.
• M3 fixing screws *2pcs
• Collecting clamp *1pc
• Drive tube *1pc.
• Silicone sock *1pc.
• Heat conductive silicone *1pc
